Test R: Speedometer/TRIPMETER/Odometer

For testing procedure, refer to illustrations. See Fig 1-Fig 3 .

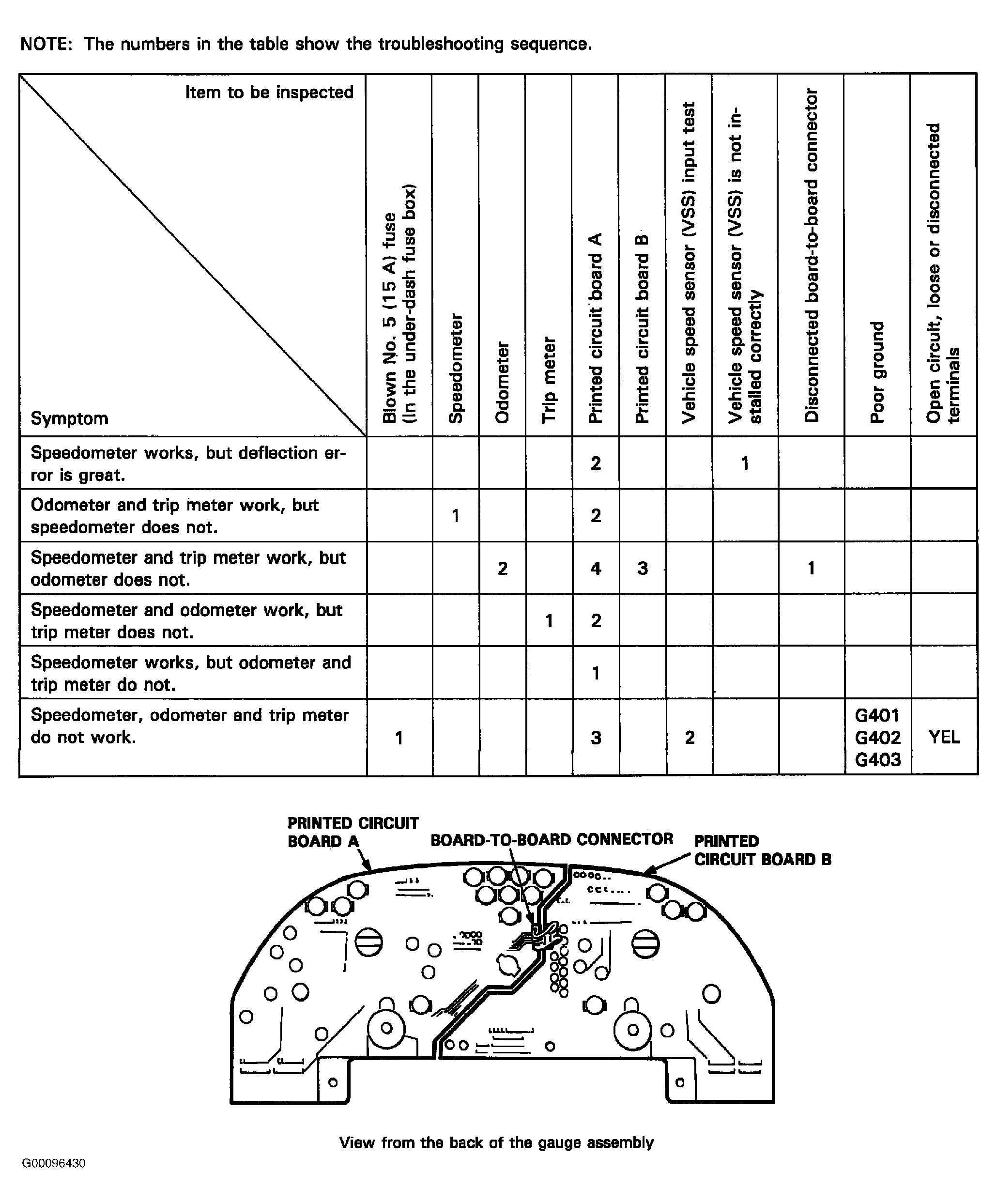

Fig 1: Testing Speedometer/Tripmeter/Odometer (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

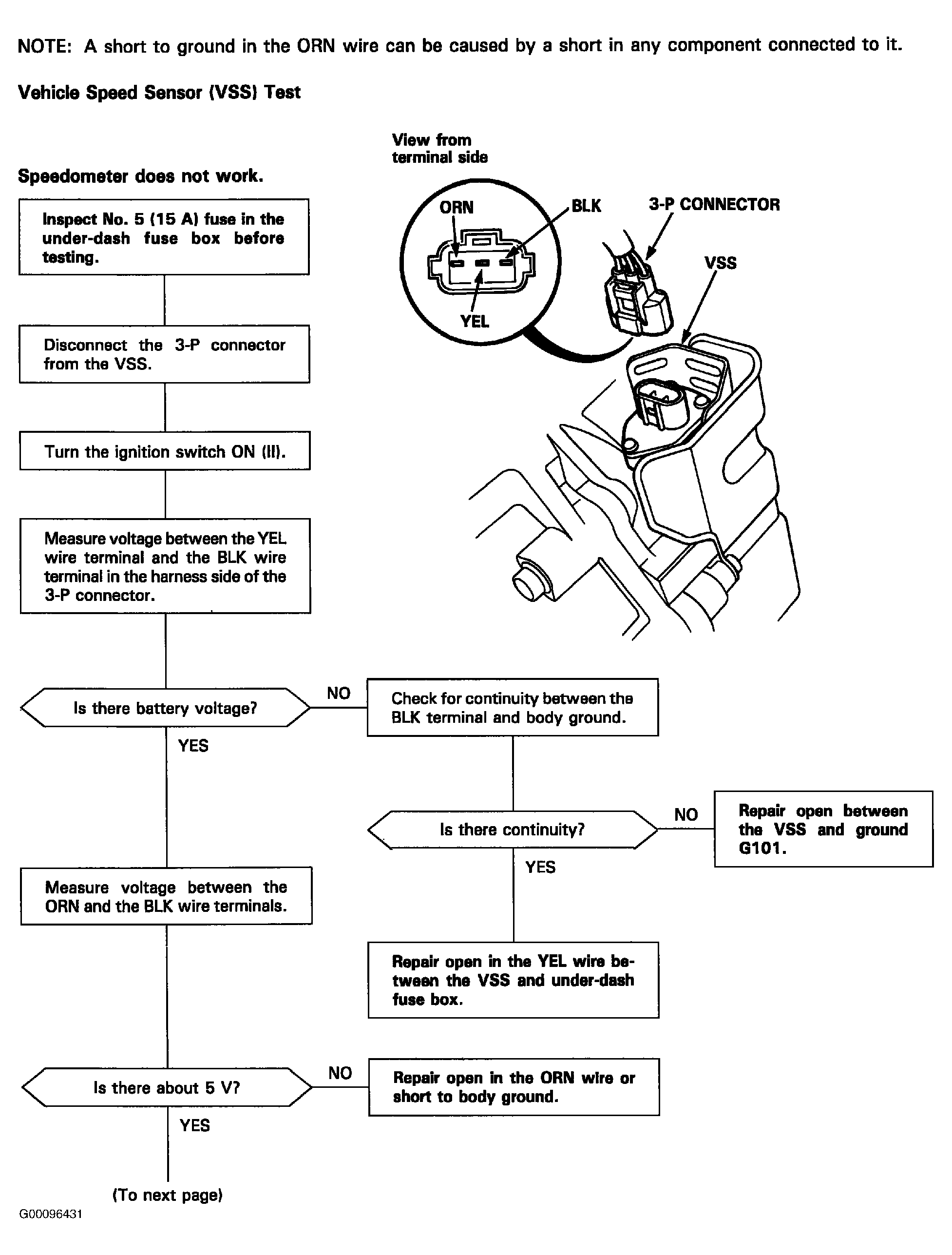

Fig 2: Testing Speedometer/Tripmeter/Odometer (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

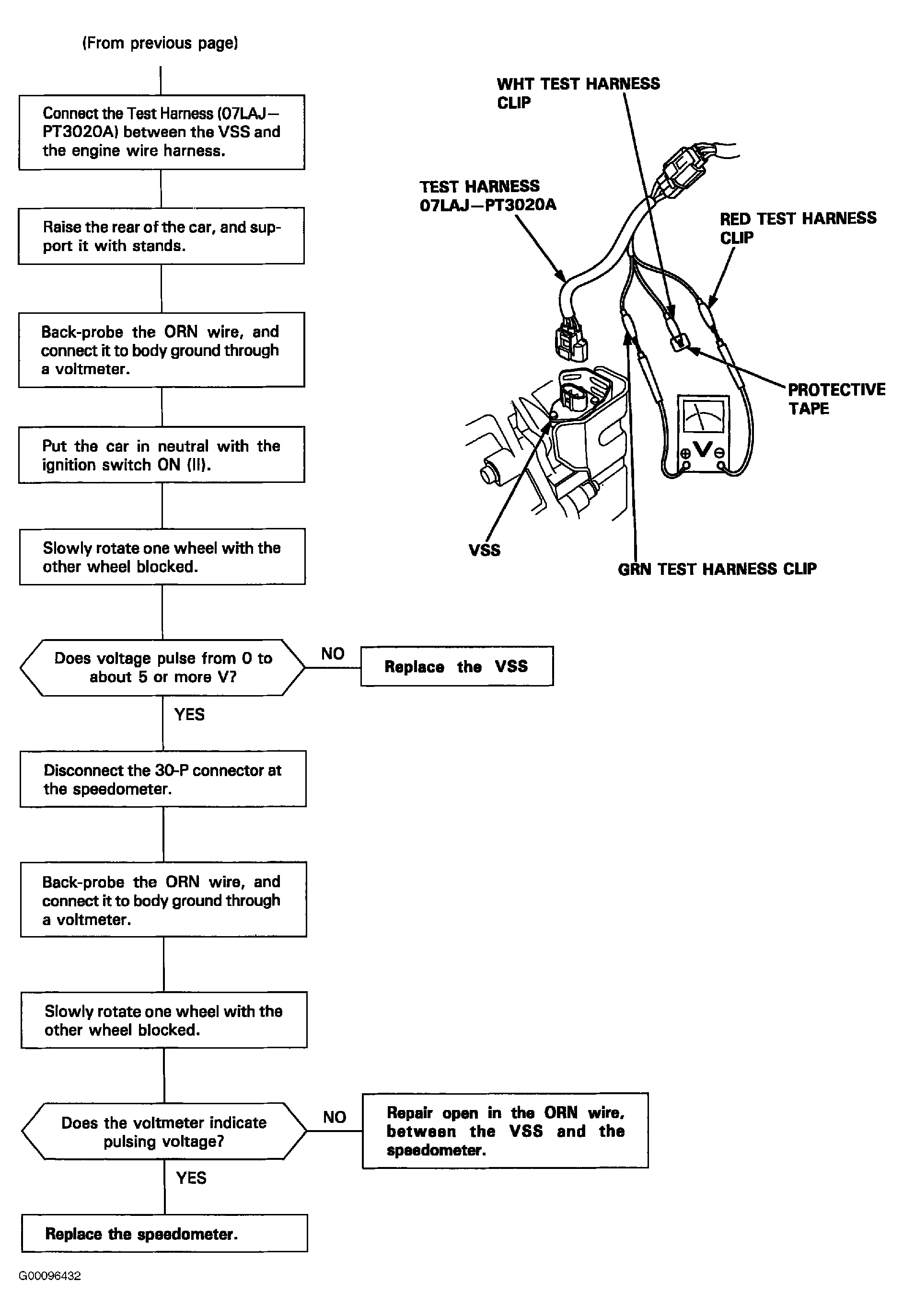

Fig 3: Testing Speedometer/Tripmeter/Odometer (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
