Test M: Parking Brake Switch

NOTE: On Canadian models, if the parking brake switch is OK, but the brake warning system does not work, make the input test for the daytime running lights control unit.
  1. Remove the center console and disconnect the connector from the switch.
  2. Check continuity between the positive terminal and body ground with the brake lever up and down. See Fig 1.
    • There should be no continuity with the brake lever down.
    • There should be continuity with the brake lever up.

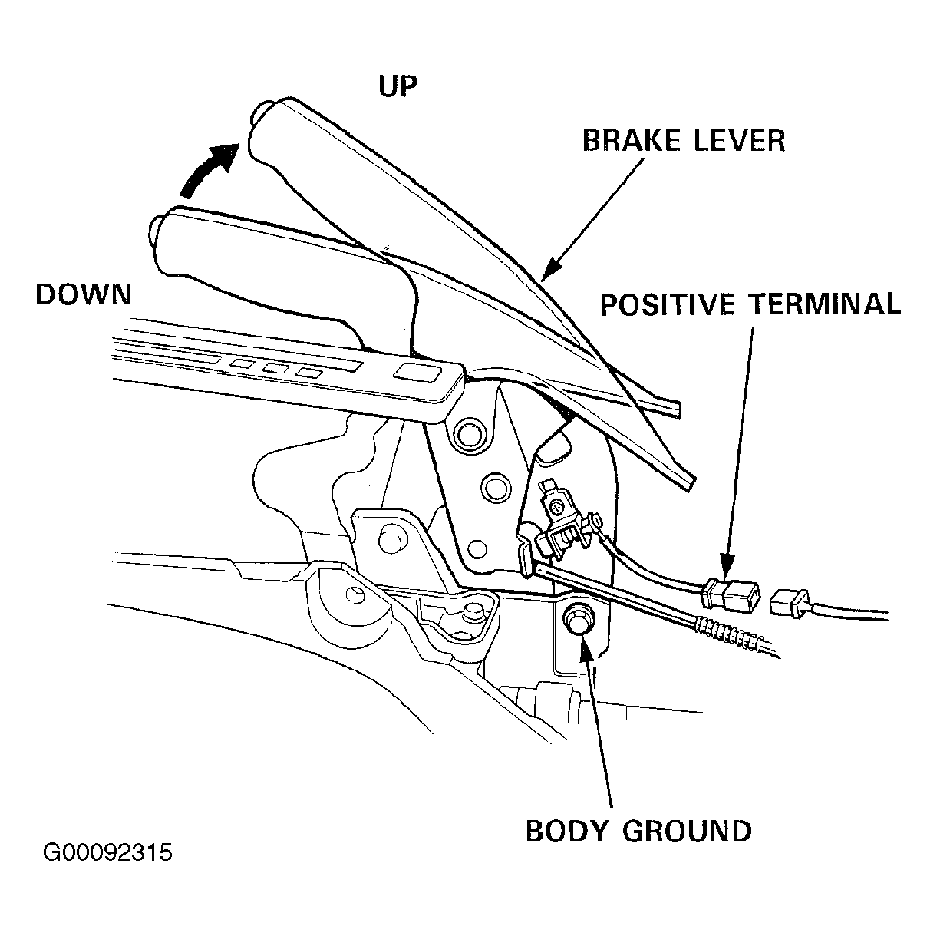

Fig 1: Testing Parking Brake Switch
G00092315Courtesy of AMERICAN HONDA MOTOR CO., INC.
