Test F: Engine Coolant Temperature Gauge: 2000-01

For 2000-2001 Engine Coolant Temperature Gauge see Fig 1 and Fig 2 .

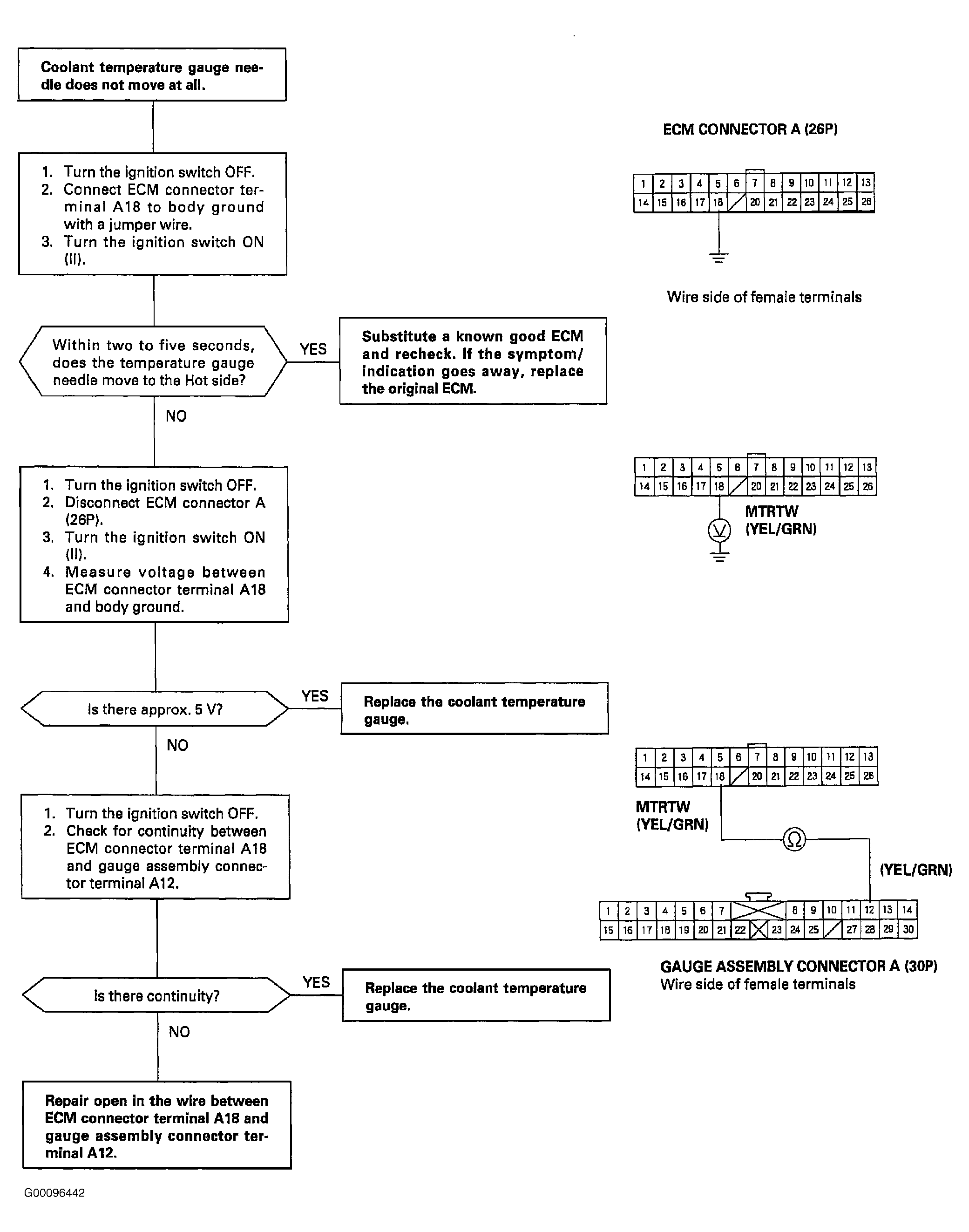

Fig 1: Testing Engine Coolant Temperature (2000-01)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

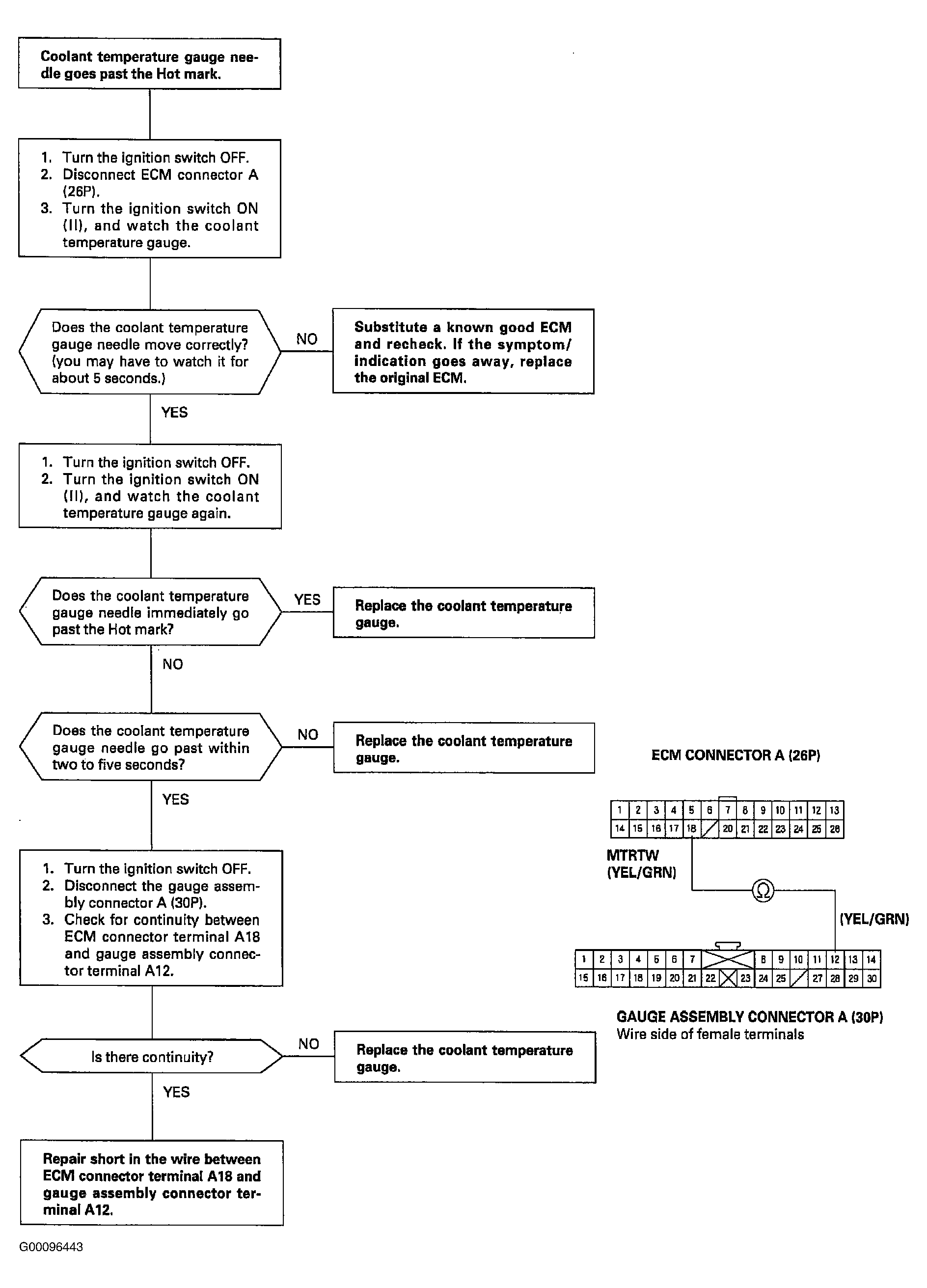

Fig 2: Testing Engine Coolant Temperature (2000-01)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
