Test B: A/T Gear Position Switch
- Remove the center console panel and dashboard.
- Disconnect the 12-P and 2-P connectors from the A/T gear position switch.

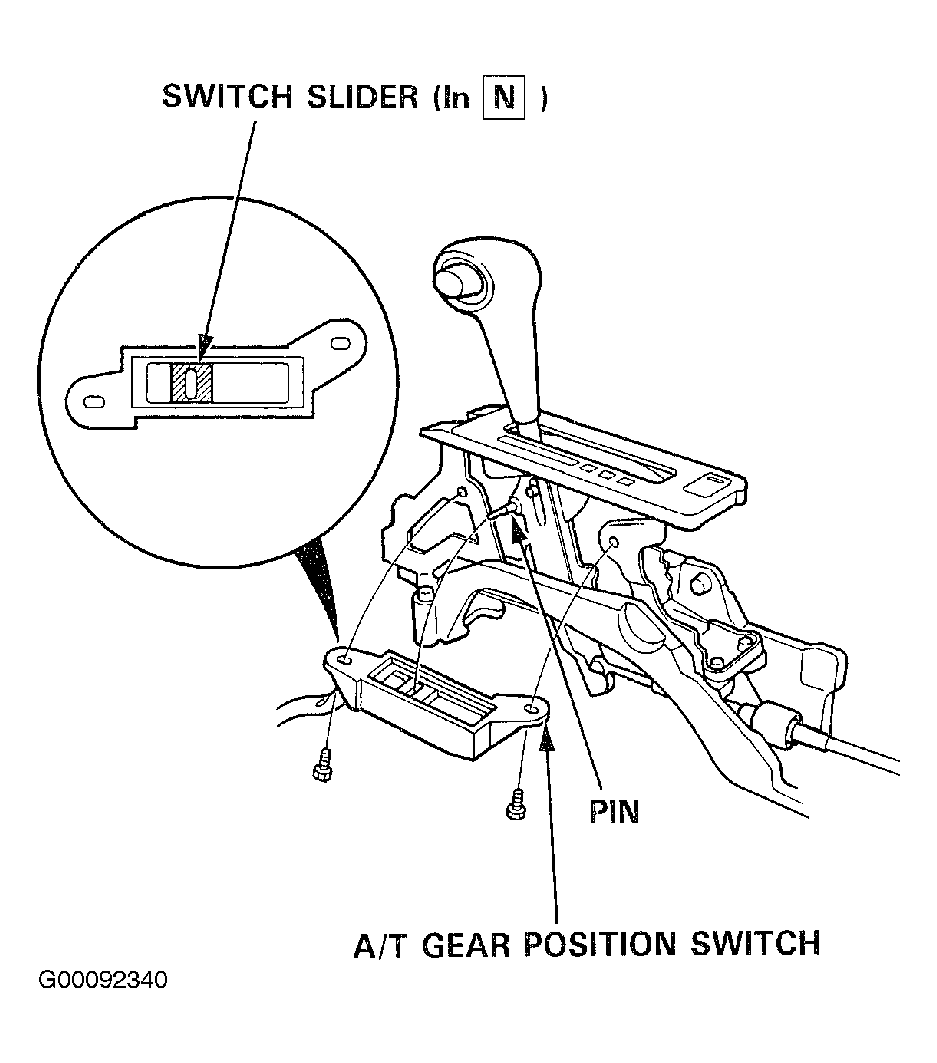

- Check for continuity between the terminals in each switch position according to the table. See Fig 1.
- Move the lever back and forth at each switch position without touching the push button, and check for continuity within the range of free play.
- If there is no continuity within the range of free play, adjust the position of the switch as described below.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
