Stubborn Brake Line Flare Nut? Try A Flare Nut Wrench (B11040D)
Publication date: 2011-04-01Reference number: B11040D
STUBBORN BRAKE LINE FLARE NUT? TRY A FLARE NUT WRENCH
TECHNICAL SERVICE BULLETIN
Reference Number(s): B11040D, Date of Issue:
April, 2011
| ACURA: | All |
| CURRENTLY APPLIES TO: | General Information |
SERVICE INFORMATION
Loosening brake line flare nuts can go from a simple job to a dreaded chore with the turn of a wrench! It doesn't take much to round off the corners of a stubborn nut, especially if you're using the wrong wrench.
For flare nuts, use a high quality flare nut wrench. Here's why:
- A standard, open-end wrench contacts just two corners of the nut. On a stubborn nut, that wrench can spread open just enough to round off the corners or deform the nut.
- A flare nut wrench is thicker around the head, and contacts five corners of the nut. This keeps it from spreading open under load, and the 5 contact points grip the nut more securely, spreading the load more evenly.

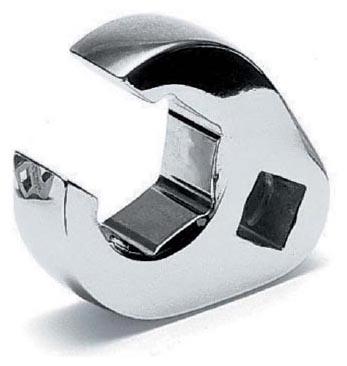

Here's a high-quality example from Snap-on. It's the Crowfoot Flare Nut Wrench (FRHM10), but they come in all the common sizes.
