Removal (Legend)

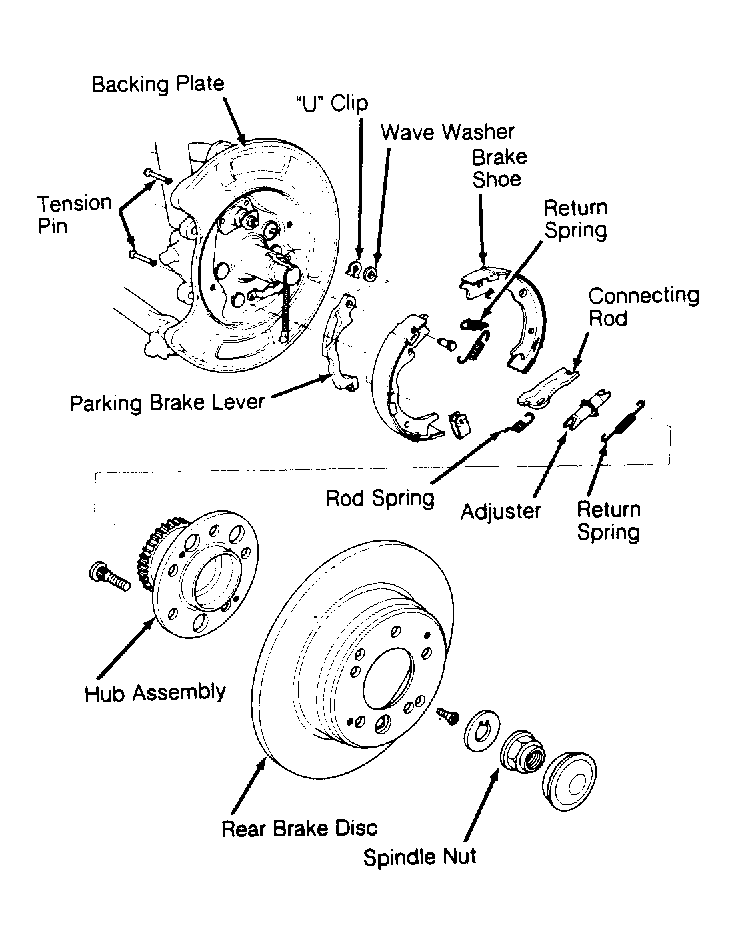

- Raise and support rear of vehicle. Remove rear wheels. Remove rear brake rotor. See DISC BRAKE ROTOR under REMOVAL & INSTALLATION. Turn and push in on retainer spring and remove tension pins. See Figure
.
- Remove rear hub assembly. See REAR AXLE BEARINGS & OIL SEAL under REMOVAL & INSTALLATION. Remove brake shoe assembly. Disconnect parking brake cable from parking brake arm. Remove adjuster and springs from brake shoes. Remove wave washer, parking brake lever and pivot pin from brake shoes.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
